External Fingerprint Storage Phase-3 Update: Introducing the PostgreSQL Fingerprint Storage Plugin

Sumit Sarin
Sumit Sarin
August 25, 2020

The final phase for the External Fingerprint Storage Project has come to an end and to finish off, we release one more fingerprint storage plugin: the PostgreSQL Fingerprint Storage Plugin!

This post highlights the progress made during phase-3. To understand what the project is about and the past progress, please refer to the phase-1 post and the phase-2 post.

Introducing the PostgreSQL Fingerprint Storage Plugin

Why PostgreSQL?

There were several reasons why it made sense to build another reference implementation, especially backed by PostgreSQL.

Redis is a key-value storage, and hence stores the fingerprints as blobs. The PostgreSQL plugin defines a relational structure for fingerprints. This offers a more powerful way to query the database for fingerprint information. Fingerprint facets can store extra information inside the fingerprints, which cannot be queried in Redis directly. PostgreSQL plugin allows powerful (indexing) and efficient querying strategies which can even query the facet metadata.

Another reason for building this plugin was to provide a basis for other relational database plugins to be built. It also validates the flexibility and design of our external fingerprint storage API.

Since PostgreSQL is a traditional disk storage database, it is more suitable for systems storing a massive number of fingerprints.

Among relational databases, PostgreSQL is quite popular, has extensive support, and is open-source. We expect the new implementation to drive more adoption, and prove to be beneficial to the community.

Installation:

The plugin can be installed using the experimental update center. Follow along the following steps after running Jenkins to download and install the plugin:

  1. Select Manage Jenkins

  2. Select Manage Plugins

  3. Go to Advanced tab

  4. Configure the Update Site URL as: https://updates.jenkins.io/experimental/update-center.json

  5. Click on Submit, and then press the Check Now button.

  6. Go to Available tab.

  7. Search for PostgreSQL Fingerprint Storage Plugin and check the box along it.

  8. Click on Install without restart

The plugin should now be installed on the system.

Usage

Once the plugin has been installed, you can configure the PostgreSQL server details by following the steps below:

  1. Select Manage Jenkins

  2. Select Configure System

  3. Scroll to the section Fingerprints and choose PostgreSQL Fingerprint Storage in the dropdown for Fingerprint Storage Engine.

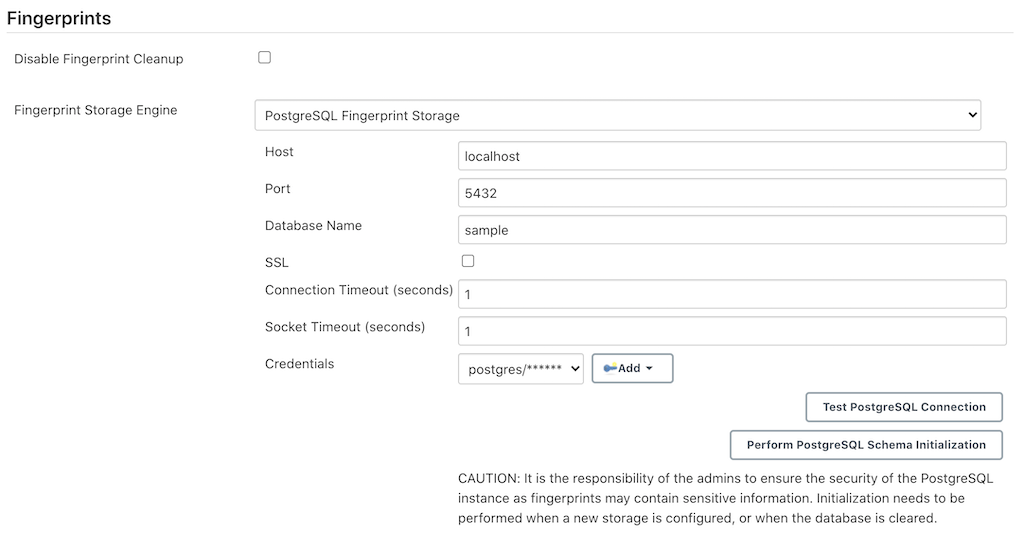

  4. Configure the following parameters to connect to your PostgreSQL instance:

    Configure Redis

    • Host - Enter hostname where PostgreSQL is running

    • Port - Specify the port on which PostgreSQL is running

    • SSL - Click if SSL is enabled

    • Database Name - Specify the database name inside the PostgreSQL instance to be used. Please note that the database will not be created by the plugin, the user has to create the database.

    • Connection Timeout - Set the connection timeout duration in seconds.

    • Socket Timeout - Set the socket timeout duration in seconds.

    • Credentials - Configure authentication using username and password to the PostgreSQL instance.

  5. Use the Test PostgreSQL Connection button to verify that the details are correct and Jenkins is able to connect to the PostgreSQL instance.

  6. [IMPORTANT] When configuring the plugin for the first time, it is highly important to press the Perform PostgreSQL Schema Initialization button. It will automatically perform schema initialization and create the necessary indexes. The button can also be used in the case the database is wiped out and schema needs to be recreated.

  7. Press the Save button.

  8. Now, all the fingerprints produced by this Jenkins instance should be saved in the configured PostgreSQL instance!

Querying the Fingerprint Database

Due to the relational structure defined by PostgreSQL, it allows users/developers to query the fingerprint data which was not possible using the Redis fingerprint storage plugin.

The fingerprint storage can act as a consolidated storage for multiple Jenkins instances. For example, to search for a fingerprint id across Jenkins instances using the file name, the following query could be used:

SELECT fingerprint_id FROM fingerprint.fingerprint
WHERE filename = 'random_file';

A sample query is provided which can be tweaked depending on the parameters to be searched:

SELECT * FROM fingerprint.fingerprint
WHERE fingerprint_id = 'random_id'
        AND instance_id = 'random_jenkins_instance_id'
        AND filename = 'random_file'
        AND original_job_name = 'random_job'
        AND original_job_build_number = 'random_build_number'
        AND timestamp BETWEEN '2019-12-01 23:59:59'::timestamp AND now()::timestamp

The facets are stored in the database as jsonb. PostgreSQL offers support to query jsonb. This is especially useful for querying the information stored inside fingerprint facets. As an example, the Docker Traceability Plugin stores information like the name of Docker images inside these facets. These can be queried across Jenkins instances like so:

SELECT * FROM fingerprint.fingerprint_facet_relation
WHERE facet_entry->>'imageName' = 'random_container';

At the moment these queries require working knowledge of the database. In future, these queries can be abstracted away by plugins and the features made available to users directly inside Jenkins.

Demo

External Fingerprint Storage Demo

Releases 🚀

We released the 0.1-alpha-1 version for the PostgreSQL Fingerprint Storage Plugin. Please refer to the changelog for more information.

Redis Fingerprint Storage Plugin 1.0-rc-3 was also released. The changelog provides more details.

A few API changes made in the Jenkins core were released in Jenkins-2.253. It mainly includes exposing fingerprint range set serialization methods for plugins.

Future Directions

The relational structure of the plugin allows some performance improvements that can be made when implementing cleanup, as well as improving the performance of Fingerprint#add(String job, int buildNumber). These designs were discussed and are a scope of future improvement.

The current external fingerprint storage API supports configuring multiple Jenkins instances to a single storage. This opens up the possibility of developing traceability plugins which can track fingerprints across Jenkins instances.

Please consider reaching out to us if you feel any of the use cases would benefit you, or if you would like to share some new use cases.

Acknowledgements

The PostgreSQL Fingerprint Storage Plugin and the Redis Fingerprint Storage plugin are maintained by the Google Summer of Code (GSoC) Team for External Fingerprint Storage for Jenkins. Special thanks to Oleg Nenashev, Andrey Falko, Mike Cirioli, Tim Jacomb, and the entire Jenkins community for all the contribution to this project.

As we wrap up, we would like to point out that there are plenty of future directions and use cases for the externalized fingerprint storage, as mentioned in the previous section, and we welcome everybody to contribute.

Reaching Out

Feel free to reach out to us for any questions, feedback, etc. on the project’s Gitter Channel or the Jenkins Developer Mailing list. We use Jenkins Jira to track issues. Feel free to file issues under either the postgresql-fingerprint-storage-plugin or the redis-fingerprint-storage-plugin component depending on the plugin.
