Build a Java app with Maven

This tutorial shows you how to use Jenkins to build a simple Java application with Maven.

If you are a Java developer using Maven, but new to CI/CD concepts, or if you are familiar with these concepts, but don’t know how to implement building your application using Jenkins, then this tutorial is for you.

This example Java application from a GitHub repository outputs the string "Hello world!", and is accompanied by some unit tests, to check that the main application works as expected. The test results are saved to a JUnit XML report.

Duration: This tutorial takes 20-40 minutes to complete, assuming you meet the below prerequisites. The exact duration will depend on the speed of your machine and whether you’ve already installed docker and docker compose.

You can stop this tutorial at any time and continue from where you left off.

Make sure you have Git installed locally.

Prerequisites

For this tutorial, you will require:

  • A macOS, Linux, Windows, or Chromebook (with Linux) machine with:

    • 2 GB of RAM

    • 2 GB of drive space for Jenkins

  • The following software installed:

Fork and clone the sample repository

Get the "Hello world!" Java application from GitHub, by forking the sample repository of the application’s source code into your own GitHub account, and then cloning this fork locally.

  1. Make sure you are signed in to your GitHub account. If you don’t yet have a GitHub account, sign up for free at GitHub.

  2. Fork the simple-java-maven-app on GitHub into your local GitHub account. If you need help, refer to the GitHub documentation on forking a repo for more information.

  3. Clone the forked simple-java-maven-app repository from GitHub to your machine. To begin this process, do either of the following, where <your-username> is the name of your user account on your operating system:

    • If you have the GitHub Desktop app installed on your machine:

      1. In GitHub, select Code in your forked repository, then select Open with GitHub Desktop.

      2. In GitHub Desktop, before selecting Clone in Clone a Repository, ensure Local Path for your operating system, as follows:

        • macOS is /Users/<your-username>/Documents/GitHub/simple-java-maven-app

        • Linux is /home/<your-username>/GitHub/simple-java-maven-app

        • Windows is C:\Users\<your-username>\Documents\GitHub\simple-java-maven-app

    • Alternatively:

      1. Open a terminal/command line prompt and cd to the appropriate directory, according to your operating system:

        • macOS - /Users/<your-username>/Documents/GitHub/

        • Linux - /home/<your-username>/GitHub/

        • Windows - C:\Users\<your-username>\Documents\GitHub\ (Use a Git bash command line window, not the usual Microsoft command prompt)

      2. Run the following command to clone your forked repo, replacing YOUR-GITHUB-ACCOUNT-NAME with the name of your GitHub account:

        git clone https://github.com/YOUR-GITHUB-ACCOUNT-NAME/simple-java-maven-app

Start your Jenkins instance

  1. Obtain the latest Jenkins instance, customized for this tutorial, by cloning the quickstart-tutorials repository.

  2. After cloning, navigate to the quickstart-tutorials directory, and execute the command docker compose up -d maven to run the example.

  3. Once the containers are running successfully (you can verify this with docker compose ps), the controller can be accessed at http://localhost:8080.

If you are unable to install docker compose on your machine for any reason, you can still run the example in the cloud for free thanks to GitPod. GitPod is free for 50 hours per month. You need to link it to your GitHub account so you can run the example in the cloud. Click on that link to open a new browser tab with a GitPod workspace where you’ll be able to start the Jenkins instance, and run the rest of the tutorial.

Now, log in using the admin username and admin password.

Create your Pipeline project in Jenkins

  1. In Jenkins, select New Item under Dashboard > at the top left.

  2. Enter your new Pipeline project name in Enter an item name.

  3. Scroll down if necessary and select Pipeline, then select OK at the end of the page.

  4. (Optional) Enter a Pipeline Description.

  5. Select Pipeline on the left pane.

  6. Select Definition, and then choose the Pipeline script from SCM option. This option instructs Jenkins to obtain your Pipeline from the source control management (SCM), which is your forked Git repository.

  7. Choose Git from the options in SCM.

  8. Enter the URL of your repository in Repositories/Repository URL. This URL can be found when clicking on the green Code button in the main page of your GitHub repo.

  9. Select Save at the end of the page. You’re now ready to create a Jenkinsfile to check into your locally cloned Git repository.

Create your initial Pipeline as a Jenkinsfile

You can now create a Pipeline that automates the building of your Java application with Maven in Jenkins.

Your Pipeline is created as a Jenkinsfile, which is committed to your locally cloned Git repository (simple-java-maven-app).

This is the foundation of "Pipeline-as-Code", which treats the continuous delivery pipeline as a part of the application, to be versioned and reviewed like any other code. Read more about Pipeline and what a Jenkinsfile is in the Pipeline and Using a Jenkinsfile sections of the User Handbook.

First, create an initial Pipeline to download a Maven Docker image and run it as a Docker container, which will build your Java application. Ensure you add a "Build" stage to the Pipeline that begins orchestrating this whole process.

  1. Using your preferred text editor or IDE, create and save a new text file named Jenkinsfile at the root of your local simple-java-maven-app Git repository.

  2. Copy the following Declarative Pipeline code and paste it into your newly created Jenkinsfile:

    pipeline {
        agent any
        stages {
            stage('Build') { (1)
                steps {
                    sh 'mvn -B -DskipTests clean package' (2)
                }
            }
        }
    }
    1 Defines a stage (directive) called Build that appears on the Jenkins UI.
    2 This sh step runs the Maven command to cleanly build your Java application without running any tests.
  3. Save your edited Jenkinsfile and commit it to your local simple-java-maven-app Git repository. Within the simple-java-maven-app directory, run the commands:

    1. git add .

    2. git commit -m "Add initial Jenkinsfile"

    3. git push to push your changes to your forked repository on GitHub, so it can be picked up by Jenkins.

  4. Now select Build Now on the left pane of your Pipeline project in Jenkins. After making a clone of your local simple-java-maven-app Git repository itself, Jenkins:

  5. Initially queues the project to be run on the agent.

  6. Runs the Build stage defined in the Jenkinsfile on the agent.

During this time, Maven downloads many artifacts necessary to build your Java application, which are ultimately stored in Jenkins' local Maven repository.

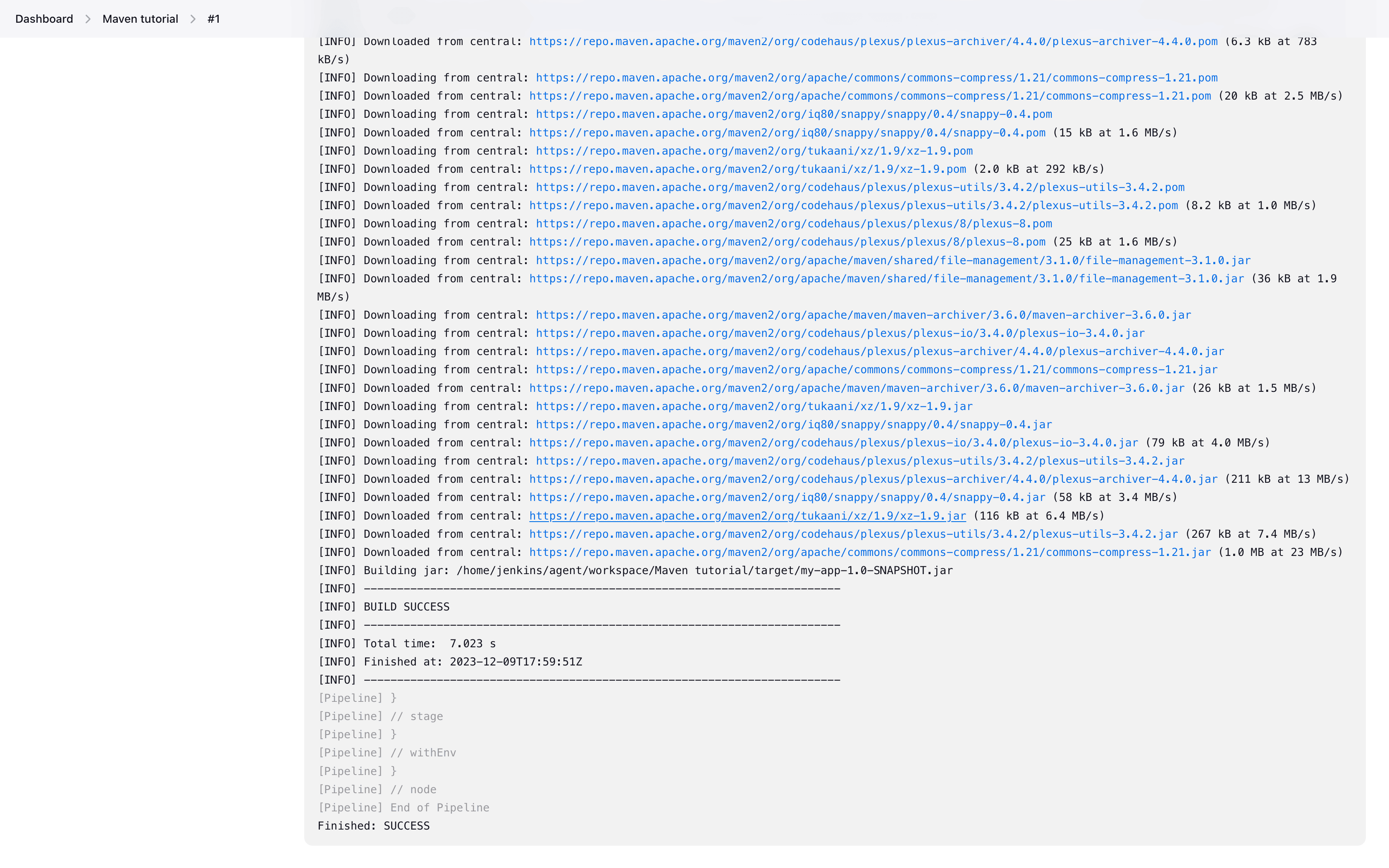

Downloading Maven artifacts

You can now click on #1 to see the details of the build. You will then see how much time the build took waiting in the queue, and how much time it took to run.

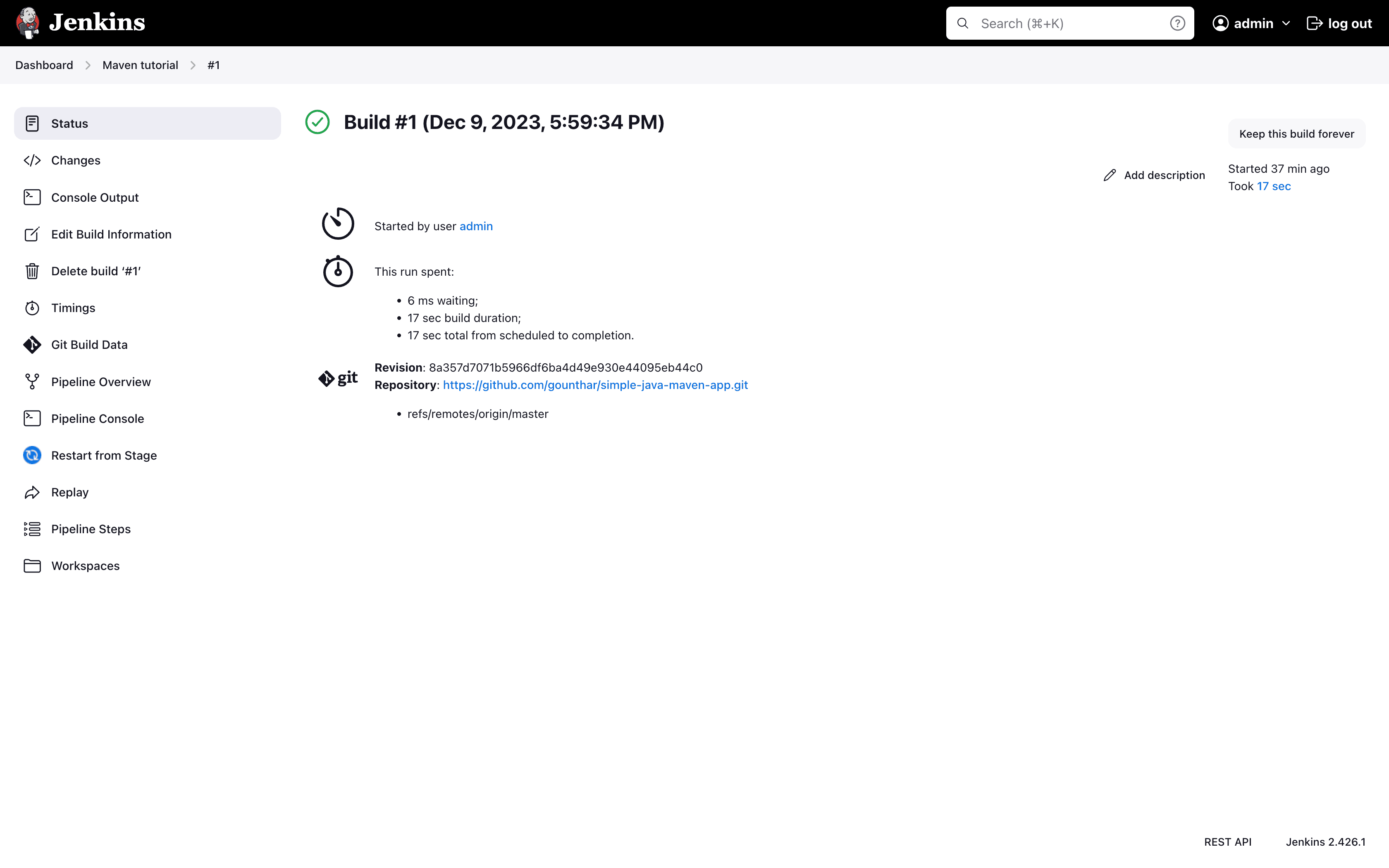

Initial Pipeline first run details On the left, you can click on Pipeline Overview to see the stages of the Pipeline.

Initial Pipeline runs successfully If you select the Build stage, you will see more information about the stage, including the output of the mvn command if you click on the green maven section.

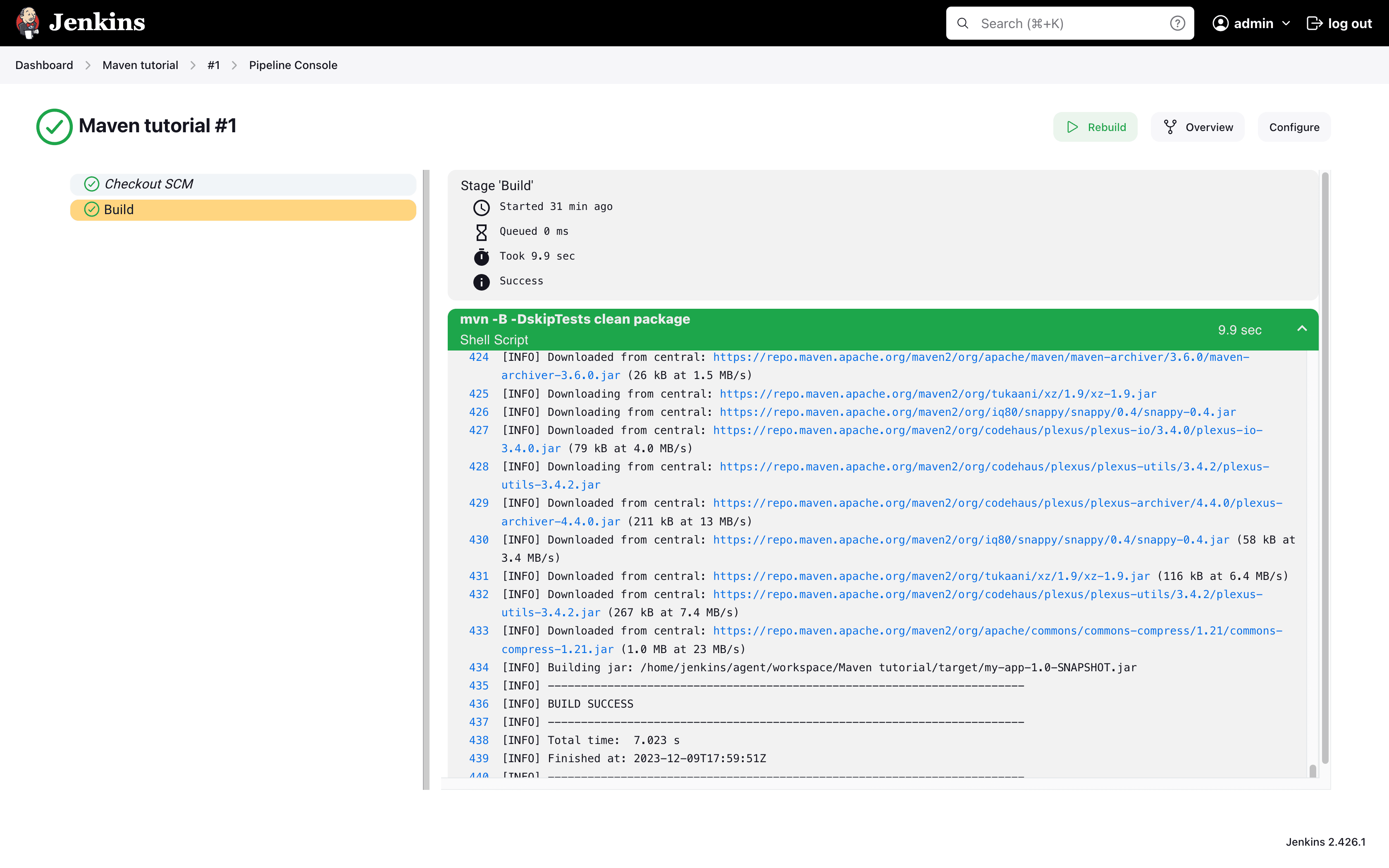

Build stage overview You can now click on Maven tutorial (if that’s the name you chose for your pipeline) on the top left to return to your pipeline main page.

Add a test stage to your Pipeline

  1. Go back to your text editor/IDE and ensure your Jenkinsfile is open.

  2. Copy and paste the following Declarative Pipeline syntax immediately under the Build stage of your Jenkinsfile:

            stage('Test') {
                steps {
                    sh 'mvn test'
                }
                post {
                    always {
                        junit 'target/surefire-reports/*.xml'
                    }
                }
            }

    so that you end up with:

    pipeline {
        agent any
        stages {
            stage('Build') {
                steps {
                    sh 'mvn -B -DskipTests clean package'
                }
            }
            stage('Test') { (1)
                steps {
                    sh 'mvn test' (2)
                }
                post {
                    always {
                        junit 'target/surefire-reports/*.xml' (3)
                    }
                }
            }
        }
    }
    1 Defines a stage (directive) called Test that appears on the Jenkins UI.
    2 This sh step executes the Maven command to run the unit test on your Java application. This command also generates a JUnit XML report, which is saved to the target/surefire-reports directory within the /var/jenkins_home/workspace/simple-java-maven-app directory in the Jenkins container.
    3 This junit step (provided by the JUnit Plugin), archives the JUnit XML report generated by the mvn test command above, and displays the results through the Jenkins interface. The post section’s always condition that contains this junit step ensures that the step is always executed at the completion of the Test stage, regardless of the stage’s outcome.
  3. Save your edited Jenkinsfile and commit it to your local simple-java-maven-app Git repository. Within the simple-java-maven-app directory, run the commands:

    1. git stage .

    2. git commit -m "Add 'Test' stage"

    3. git push to push your changes to your forked repository on GitHub, so it can be picked up by Jenkins.

  4. In Jenkins, go back to Dashboard if necessary, then Maven Tutorial and launch another build thanks to Build Now.

  5. After a while, a new column Test appear in the Stage View.

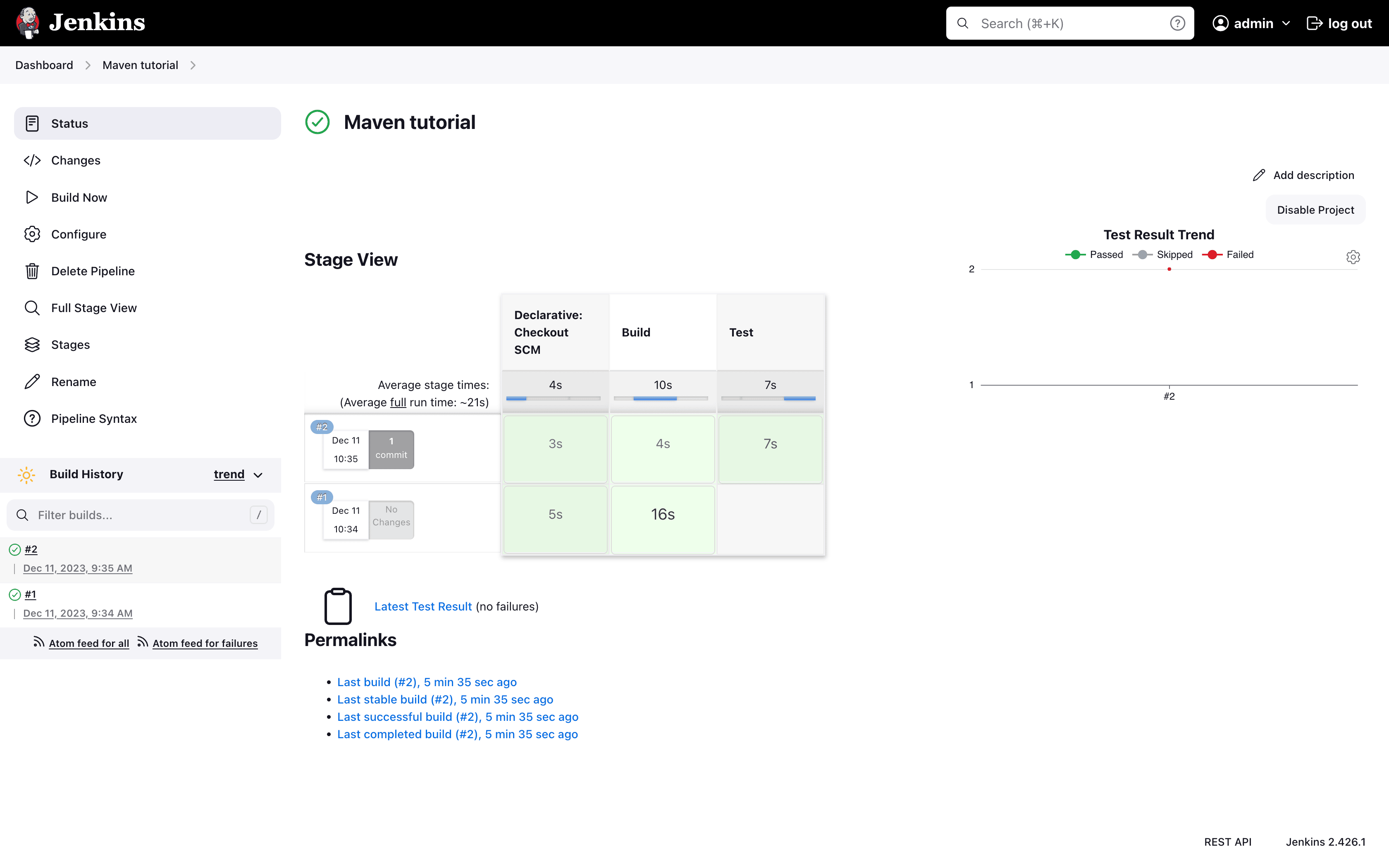

Test stage runs successfully

  1. You can click on #2 or on the number representing your last build on the left, under Build History. You will then see the details of the build.

    If Docker has not restarted since you last ran the Pipeline above, then no Maven artifacts are downloaded during the "Build" stage. Therefore, running your Pipeline this subsequent time should be much faster.

You can now click on Pipeline Overview to see the stages of the Pipeline.

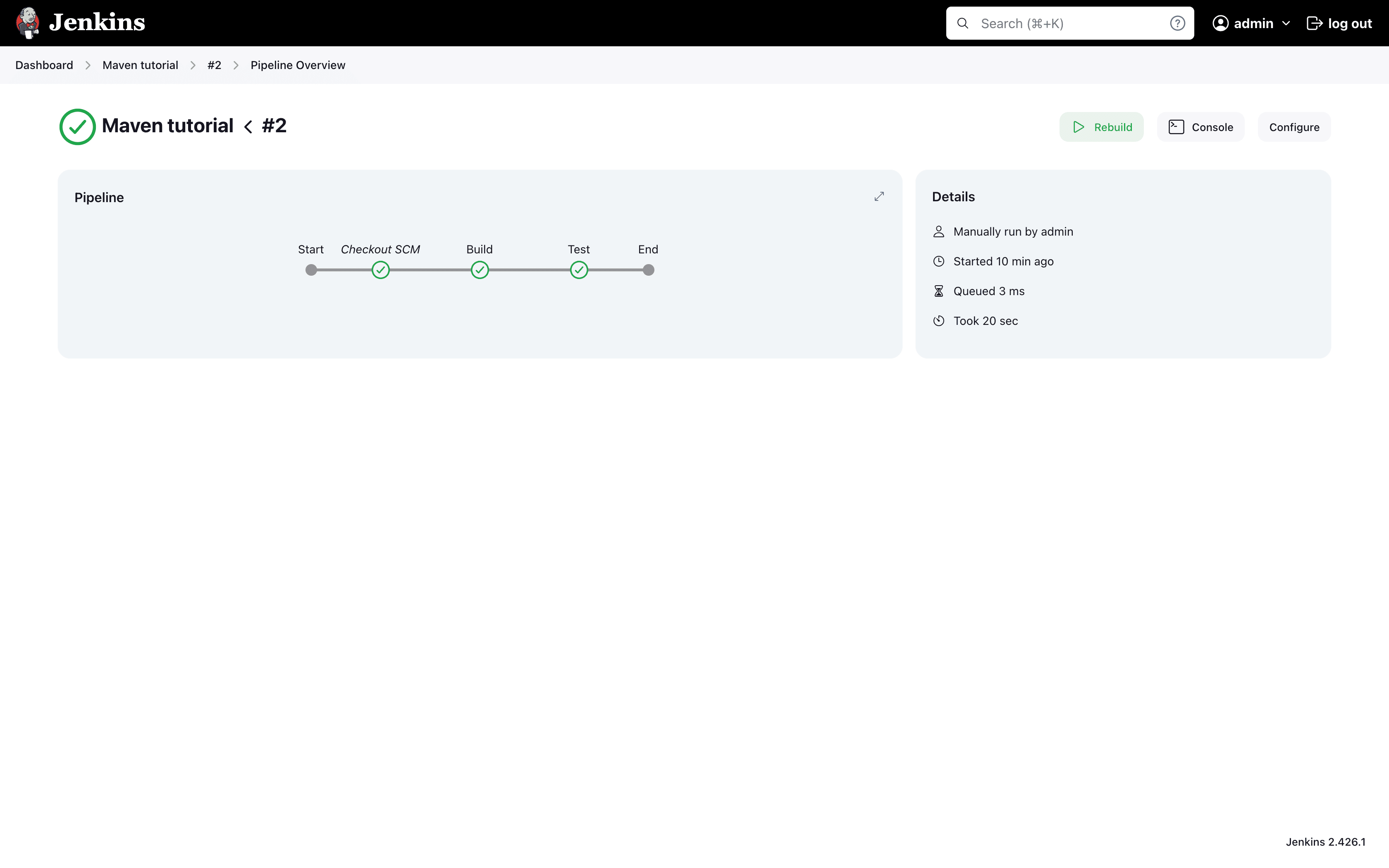

Test stage runs successfully

Notice the additional "Test" stage. You can select the "Test" stage checkmark to access the output from that stage.

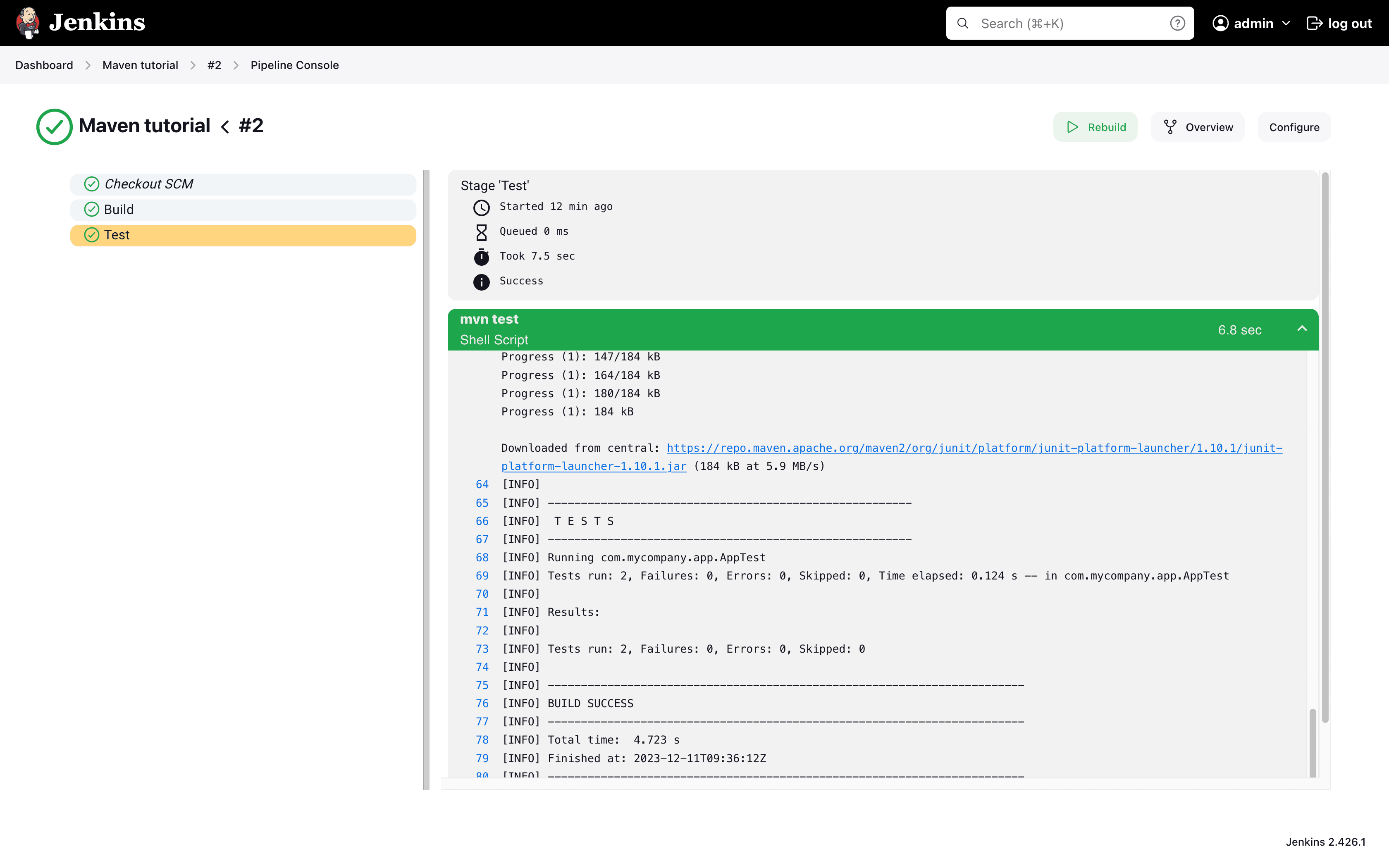

Test stage runs successfully (with output)

Add a final deliver stage to your Pipeline

  1. Go back to your text editor/IDE and ensure your Jenkinsfile is open.

  2. Copy and paste the following Declarative Pipeline syntax immediately under the Test stage of your Jenkinsfile:

            stage('Deliver') {
                steps {
                    sh './jenkins/scripts/deliver.sh'
                }
            }

    Add a skipStagesAfterUnstable option, resulting in:

    pipeline {
        agent any
        options {
            skipStagesAfterUnstable()
        }
        stages {
            stage('Build') {
                steps {
                    sh 'mvn -B -DskipTests clean package'
                }
            }
            stage('Test') {
                steps {
                    sh 'mvn test'
                }
                post {
                    always {
                        junit 'target/surefire-reports/*.xml'
                    }
                }
            }
            stage('Deliver') { (1)
                steps {
                    sh './jenkins/scripts/deliver.sh' (2)
                }
            }
        }
    }
    1 Defines a new stage called Deliver that appears on the Jenkins UI.
    2 This sh step runs the shell script deliver.sh located in the jenkins/scripts directory from the root of the simple-java-maven-app repository. Refer to the deliver.sh script file to learn more. It is generally good practice to keep your Pipeline code, such as your Jenkinsfile, streamlined, and place more complex build steps, particularly stages consisting of 2 or more steps, into separate shell script files (like the deliver.sh file). Maintaining your Pipeline code is easier this way.
  3. Save your updated Jenkinsfile and commit it to your local simple-java-maven-app Git repository.

    1. git stage .

    2. git commit -m "Add 'Deliver' stage"

    3. git push to push your changes to your forked repository on GitHub, so it can be picked up by Jenkins.

  4. In Jenkins, sign in if necessary, and go back to the Dashboard and then Maven tutorial or go directly to Maven tutorial depending on where you’re starting from.

  5. Select Build Now on the left. You should see after a while a new column Deliver appear in the Stage View.

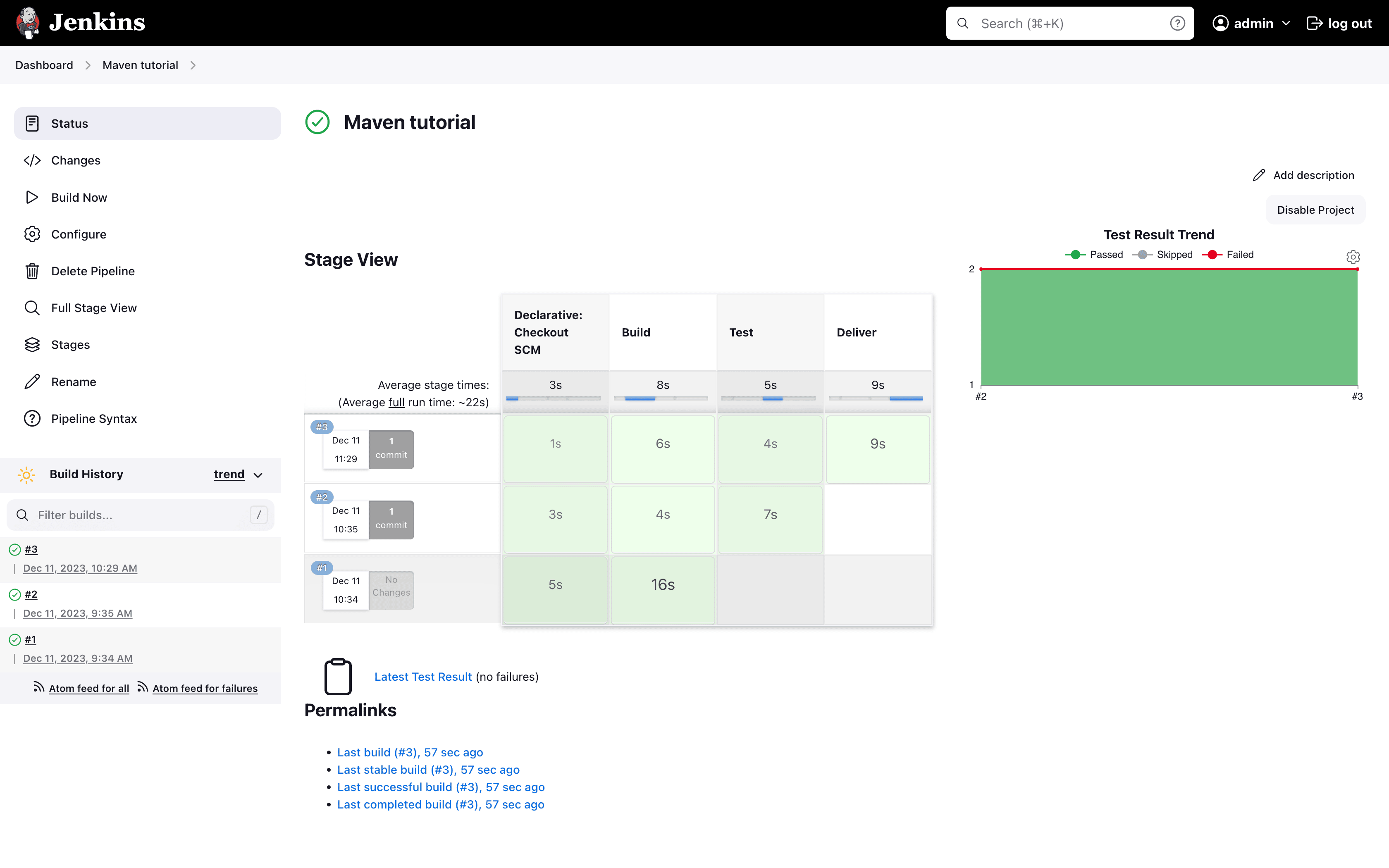

    Deliver stage runs successfully

  6. You can click on #3 or on the number representing your last build on the left, under Build History. You will then see the details of the build.

    You can now click on Pipeline Overview to see the stages of the Pipeline. Once you click on the Deliver green checkmark, and then on the first green section, the output should be something like below, showing you the execution results of your Java application at the end.

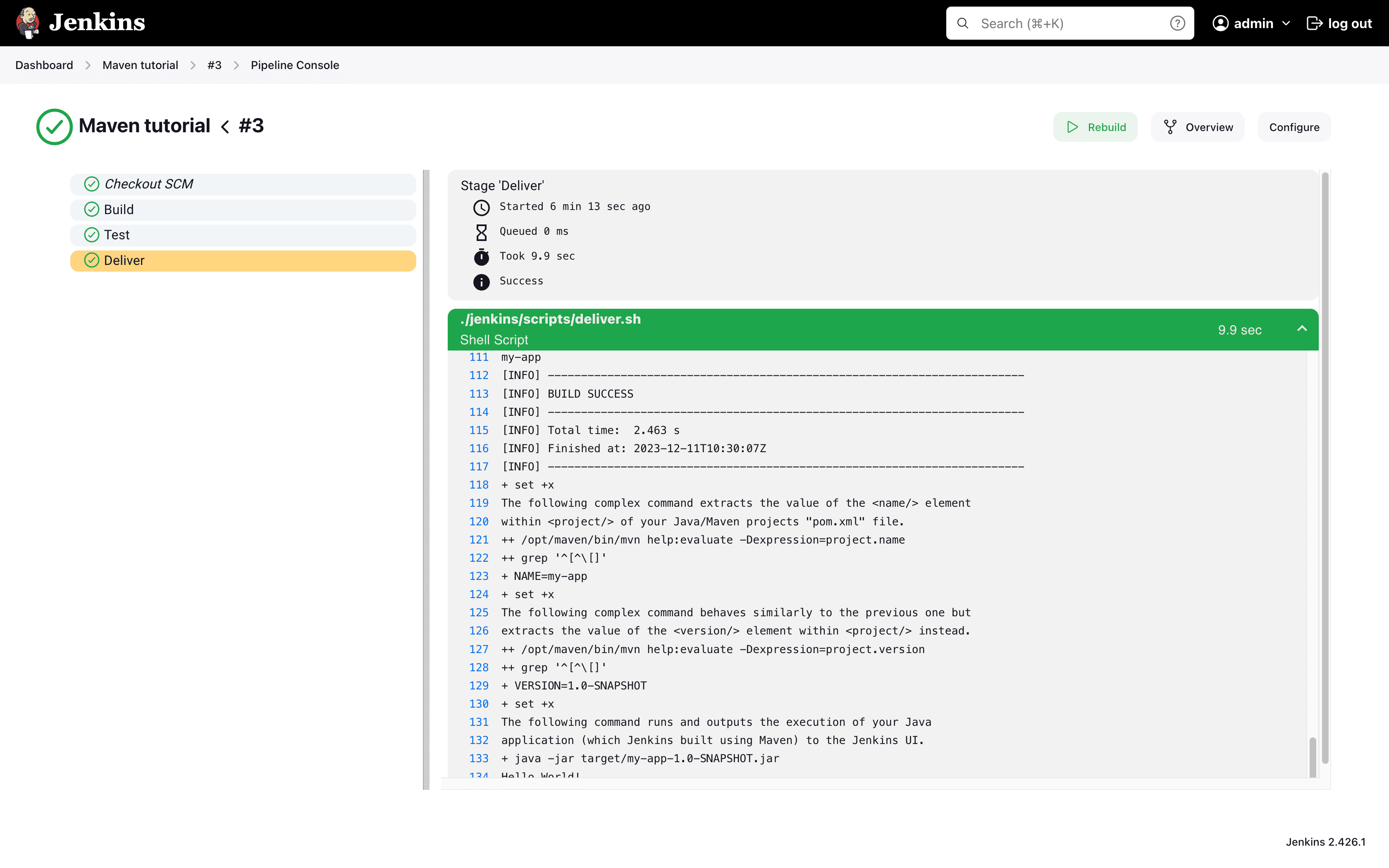

    Deliver stage output only

  7. You can now click on Maven tutorial on the top left, and then on Stages at the left. It will list your previous Pipeline runs in reverse chronological order. Pipeline overview interface with all previous runs displayed

Wrapping up

Well done! You’ve just used Jenkins to build a simple Java application with Maven!

The "Build", "Test" and "Deliver" stages you created above are the basis for building more complex Java applications with Maven in Jenkins, as well as Java and Maven applications that integrate with other technology stacks.

Because Jenkins is extremely extensible, it can be modified and configured to handle practically any aspect of build orchestration and automation.

To learn more about what Jenkins can do, check out:

If you want to clean up your environment, you can stop the containers with docker compose down -v --remove-orphans.
